asp.net MVC

How to export jQuery datatables all data export features in asp.net MVC?

How to export jQuery datatables all data export features in asp.net MVC?, someone asked me to explain?

In this article we will discuss to export data, copy to clipboard or print we should use Table Tools plugin for datatables. We need to use tools plugin css, javascript and flash SWF file.

We will be using Population table.

Step 1: Create a table using the following script with data:

CREATE TABLE[dbo].[Population](
      [PopulationId] [int] IDENTITY(1,1) NOT NULL,
      [CountryName] [nvarchar](150) NOT NULL,
      [PhoneCode] [nvarchar](10) NULL,
      [CountryCode] [nvarchar](50) NOT NULL,
      [Population] [decimal](18, 0) NOT NULL,
      [AREA] [nvarchar](50) NOT NULL,
      [GDP] [nvarchar](50) NULL,
 CONSTRAINT[PK_Population] PRIMARY KEY CLUSTERED
(
      [PopulationId] ASC
)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]
) ON[PRIMARY]
GO
SET IDENTITY_INSERT[chip].[Population] ON
INSERT [chip].[Population] ([PopulationId], [CountryName], [PhoneCode], [CountryCode],[Population], [AREA],[GDP]) VALUES (1, N'United States', N'1', N'US', CAST(310232863 AS Decimal(18, 0)), N'9,629,091', N'16.72 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (2, N'China', N'86', N'CN', CAST(1330044000 AS Decimal(18, 0)), N'9,596,960', N'9.33 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (3, N'Japan', N'81', N'JP', CAST(127288000 AS Decimal(18, 0)), N'377,835', N'5.007 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (4, N'Germany', N'49', N'DE', CAST(81802257 AS Decimal(18, 0)), N'357,021', N'3.593 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (5, N'Russia', N'7', N'RU', CAST(140702000 AS Decimal(18, 0)), N'17,100,000', N'2.113 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (6, N'France', N'33', N'FR', CAST(64768389 AS Decimal(18, 0)), N'547,030', N'2.739 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (7, N'Brazil', N'55', N'BR ', CAST(201103330 AS Decimal(18, 0)), N'8,511,965', N'2.19 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (8, N'Italy', N'39', N'IT', CAST(60340328 AS Decimal(18, 0)), N'301,230', N'2.068 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (9, N'United Kingdom', N'44', N'GB', CAST(62348447 AS Decimal(18, 0)), N'244,820', N'2.49 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (10, N'Canada', N'1', N'CA', CAST(33679000 AS Decimal(18, 0)), N'9,984,670', N'1.825 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (11, N'South Korea', N'82', N'KR', CAST(48422644 AS Decimal(18, 0)), N'98,480', N'1.198 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (12, N'Mexico', N'52', N'MX', CAST(112468855 AS Decimal(18, 0)), N'1,972,550', N'1.327 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (13, N'India', N'91', N'IN', CAST(1173108018 AS Decimal(18, 0)), N'3,287,590', N'1.67 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (14, N'Australia', N'61', N'AU', CAST(21515754 AS Decimal(18, 0)), N'7,686,850', N'1.488 Trillion')
INSERT [chip].[Population] ([PopulationId], [CountryName],[PhoneCode], [CountryCode], [Population],[AREA], [GDP]) VALUES (15, N'Spain', N'34', N'ES', CAST(46505963 AS Decimal(18, 0)), N'504,782', N'1.356 Trillion')

Step 2: Create an ado.net entity data model using table Population and generate entity for that.

Step 3: Right click on the "Controllers" folder and add " Population" controller. Copy and paste the following code. Please make sure to include "MVC_tutorials.Models" namespace.

using MVC_tutorials.Models;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;

namespace MVC_tutorials.Controllers
{
   public class DataTablesController : Controller
    {
        //
        // GET: /DataTables/
        models db = new models();
        public ActionResult Index()
        {
            return View(db.Populations);
        }
    }
}

Step 4: Right click on the "Index" action method in the "datatablesController" and add "Index" view. Copy and paste the following code.

@model IEnumerable<MVC_tutorials.Models.Population>
@{
    Layout = null;
}
<!DOCTYPE html>
<html>
<head>
    <meta name="viewport" content="width=device-width" />
    <title>jQuery datatables export features in asp.net MVC</title>
   <script src="//code.jquery.com/jquery-1.10.2.js"></script>
    <script src="//cdn.datatables.net/1.10.7/js/jquery.dataTables.min.js"></script>
    <script src="//cdn.datatables.net/tabletools/2.2.4/js/dataTables.tableTools.min.js"></script>
    <link rel="stylesheet" type="text/css"
        href="//cdn.datatables.net/1.10.7/css/jquery.dataTables.min.css" />
    <link rel="stylesheet" type="text/css"
        href="//cdn.datatables.net/tabletools/2.2.4/css/dataTables.tableTools.css" />

    <script type="text/javascript">
       $(document).ready(function () {
            var table = $('#datatable').dataTable();
            var tableTools = new $.fn.dataTable.TableTools(table, {
'aButtons': [
{
'sExtends': 'xls',
'sButtonText': 'Save to Excel',
'sFileName': 'Data.xls'
},
{
'sExtends': 'print',
'bShowAll': true,
},
{
'sExtends': 'pdf',
'bFooter': false
},
'copy',
'csv'
],
'sSwfPath': '//cdn.datatables.net/tabletools/2.2.4/swf/copy_csv_xls_pdf.swf'
            });
           $(tableTools.fnContainer()).insertBefore('#datatable_wrapper');
        });
    </script>
</head>
<body>
    <div style="width: 800px; border: 1px solid black; padding: 3px">
        <table id="datatable">
            <thead>
                <tr>
                   <th>CountryName
                   </th>
                   <th>PhoneCode
                   </th>
                   <th>CountryCode
                   </th>
                   <th>Population
                   </th>
                </tr>
            </thead>
            <tfoot>
                <tr>
                   <th>CountryName
                   </th>
                   <th>PhoneCode
                   </th>
                   <th>CountryCode
                   </th>
                   <th>Population
                   </th>
                </tr>
            </tfoot>
            <tbody>
                @foreach(var row in Model) {
                   <tr>
                       <td>@row.CountryName</td>
                       <td>@row.PhoneCode</td>
                       <td>@row.CountryCode</td>
                       <td>@row.Population1</td>
                   </tr>
               }
            </tbody>
        </table>
    </div>
</body>
</html>

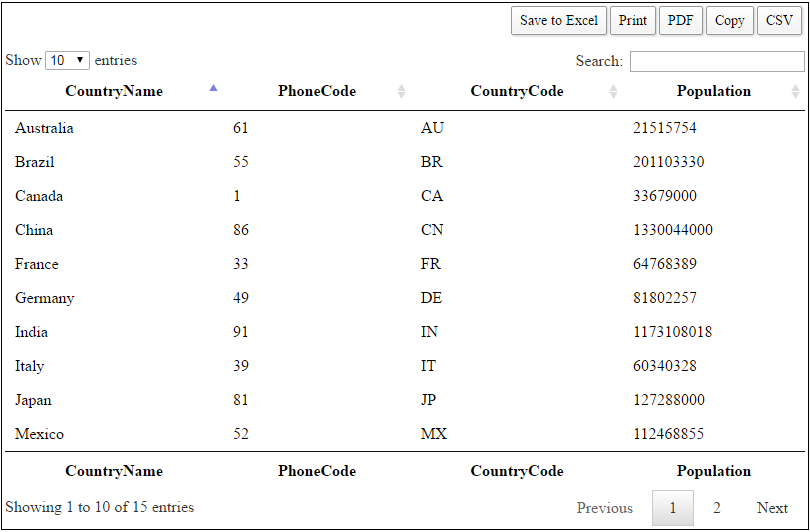

Output:

jQuery datatables exporting features in asp.net
